STLA02 - White LED driver

STMicroelectronics

The STLA02 by STMicroelectronics is a White LED driver. Below is the official datasheet preview.

📥 Download Datasheet

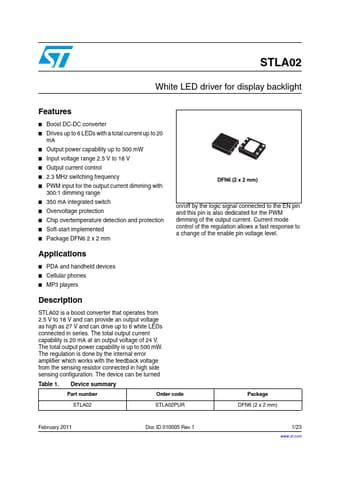

STLA02 White LED driver by STMicroelectronics - Datasheet Preview — Official preview page of the **STLA02** White LED driver datasheet (STMicroelectronics).

Datasheet Details

Part number	STLA02
Manufacturer	STMicroelectronics
File Size	701.61 KB
Description	White LED driver
Datasheet	STLA02-STMicroelectronics.pdf
Additional preview pages of the STLA02 datasheet.

STLA02 Product details

Description

STLA02 is a boost converter that operates from 2.5 V to 18 V and can provide an output voltage as high as 27 V and can drive up to 6 white LEDs connecte

Features

Boost DC-DC converter.
Drives up to 6 LEDs with a total current up to 20 mA.
Output power capability up to 500 mW.
Input voltage range 2.5 V to 18 V.
Output current control.
2.3 MHz switching frequency.
PWM input for the output current dimming with 300:1 dimming range.
350 mA integrated switch.
Overvoltage protection.
Chip overtemperature detection and protection.
Soft-start implemented.
Package DFN6 2 x 2 mm DFN6 (2 x 2 mm) on/off by.
