STL-S3 Stratum 3 Timing Module

Table 5 Pin # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 Connection Hold Over Reference 3 Reference 1 Reference 4 Reference 2 Reference 5 Free Run Reference 6 GND Reset Alarm Output 3 CNTRL 1 CNTRL 3 CNTRL 2 SPI Enable Lock GND SPI_OUT Output 1 SPI_.

STL-S3 Features

* 6 Input References

* Hitless Switch Over

* CMOS output up to 77.76 MHz

* 8 kHz Output

* Fast Acquisition Mode

* Manual/ Autonomous Operation

* Master/Slave Configuration

* Revertive/Nonrevertive Modes Application The Connor-Winfield

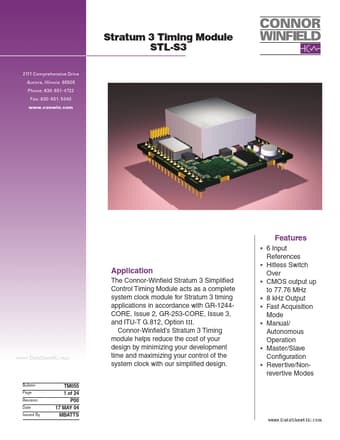

STL-S3_Connor-Winfield.pdf

STL-S3 Datasheet Preview — This datasheet PDF includes multiple part numbers: STL-S3, STL-S3_Connor. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STL-S3, STL-S3_Connor

Manufacturer:

Connor-Winfield

File Size:

1.09 MB

Description:

Stratum 3 timing module.

Note:

This datasheet PDF includes multiple part numbers: STL-S3, STL-S3_Connor.
Please refer to the document for exact specifications by model.
