STL05S05F

(STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter

STL05S05F Features

* 2W Power in smaller compact package Versatile SMD package 2kVdc isolated outputs Industry standard footprint and size Operating Temp. Range

* 40oC to 85oC CECC00802 Re-flow (280 deg. C max.) 2 Year Warranty DESCRIPTION The

STL05S05F General Description

The STL Series provides 2W of power in a smaller compact industry standard package, typically used for 1W products. Its innovative design results in a high performance solution for a wide range of applications. The product is fully encapsulated in a non-flammable plastic case (meeting UL 94V-0) and .

STL05S05F Datasheet (162.47 KB)

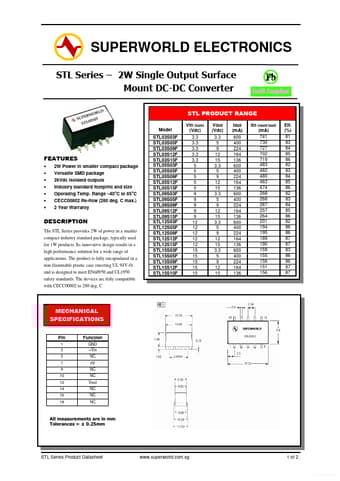

Preview of STL05S05F PDF

Datasheet Details

Part number:

STL05S05F

Manufacturer:

Superworld Electronics

File Size:

162.47 KB

Description:

(stl03s03f - stl15s15f) 2w single output surface mount dc-dc converter.
SUPERWORLD ELECTRONICS STL Series

* 2W Single Output Surface Mount DC-DC Converter STL PRODUCT RANGE Model STL03S03F STL03S05F STL03S09F STL03.
