STLQ50M50R

low drop linear regulator

STMicroelectronics

STLQ50M50R Features

* 2.3 V to 12 V input voltage range

* 50 mA maximum output current

* 3 µA quiescent current

* Available in 1.8 V, 2.5 V, 3.3 V, 5.0 V and adjustable

* 200 mV dropout voltage at 25 mA output current

* Internal thermal protection

* Available in SOT323-5L package, and SOT23-

STLQ50M50R General Description

The STLQ50 is a BiCMOS linear regulator specifically designed for operating in environment with very low power consumption constraints. Due to the very low quiescent current (3 µA) the device is suitable for those application that have very long stand-by time allowing extension of battery life. The .

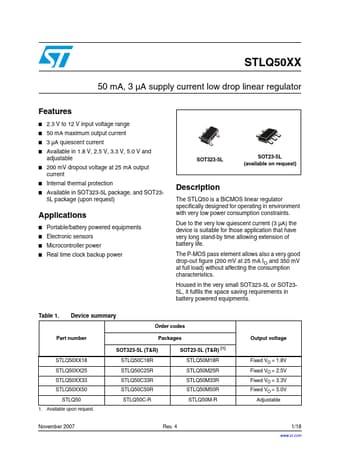

STLQ50M50R Datasheet (292.46 KB)
