STLT30 N-CHANNEL LOW THRESHOLD POWER MOS TRANSISTORS

STLT30 Description

STLT30 STLT29 N - CHANNEL ENHANCEMENT MODE LOW THRESHOLD POWER MOS TRANSISTORS ADVANCE DATA TYPE STLT30 STLT29 Voss 60 V 50 V ROS(on) 0.080 0.080 .

STLT30 Applications

* Typical uses are in relay and actuator driving in the automotive enviroment. TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS VOS VOGR V GS 10 10 10M Ptot Tstg Tj Drain-source voltage (VGS = 0) Drain-gate voltage (RGS = 20 KO) Gate-source voltage Drain current (cont. ) at Tc= 25°C Drai

📥 Download Datasheet

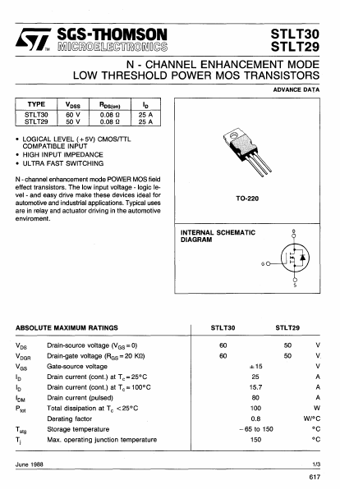

Preview of STLT30 PDF
datasheet Preview Page 2 datasheet Preview Page 3
