STM32F100R8 Datasheet advanced ARM-based 32-bit MCU

Manufacturer: STMicroelectronics

Download the STM32F100R8 datasheet PDF. This datasheet also includes the STM32F100C4 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STM32F100C4-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

Overview

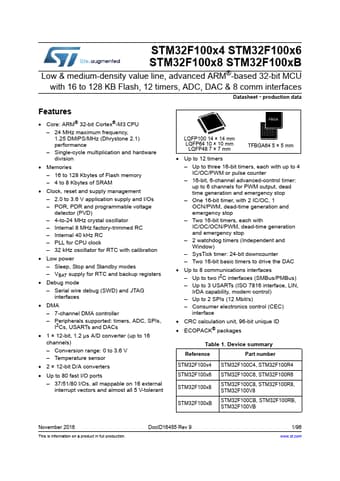

STM32F100x4 STM32F100x6 STM32F100x8 STM32F100xB Low & medium-density value line, advanced ARM®-based 32-bit MCU with 16 to 128 KB Flash, 12 timers, ADC, DAC & 8 comm interfaces Datasheet - production.

Key Features

  • Core: ARM® 32-bit Cortex®-M3 CPU.
  • 24 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance.
  • Single-cycle multiplication and hardware division.
  • Memories.
  • 16 to 128 Kbytes of Flash memory.
  • 4 to 8 Kbytes of SRAM.
  • Clock, reset and supply management.
  • 2.0 to 3.6 V.
