STM32F100RD, STM32F100RC 32-bit MCU

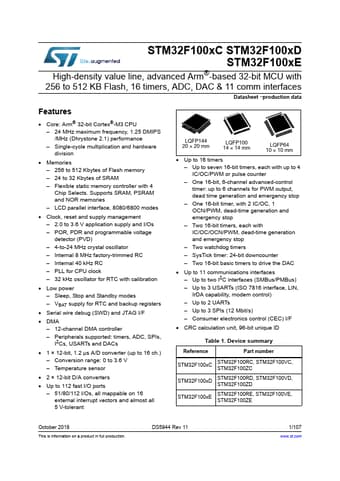

📥 Download Datasheet Datasheet Preview Page 1

Description

STM32F100xC STM32F100xD STM32F100xE High-density value line, advanced ARM®-based 32-bit MCU with 256 to 512 KB Flash, 16 timers, ADC, DAC & 11 comm in.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32F100RD, STM32F100RC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STM32F100RD, STM32F100RC
Manufacturer
STMicroelectronics ↗
File Size
1.54 MB
Datasheet
STM32F100RC-STMicroelectronics.pdf
Description
32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32F100RD, STM32F100RC.
Please refer to the document for exact specifications by model.

Features

* Core: ARM® 32-bit Cortex®-M3 CPU
* 24 MHz maximum frequency, 1.25 DMIPS /MHz (Dhrystone 2.1) performance
* Single-cycle multiplication and hardware division
* Memories
* 256 to 512 Kbytes of Flash memory
* 24 to 32 Kbytes of SRAM
* Flexible s
