STM32F101x8, STM32F101C6 (STM32F101xx) advanced ARM-based 32-bit MCU

STM32F101x8 Description

www.DataSheet4U.com STM32F101x6 STM32F101x8 STM32F101xB Access line, advanced ARM-based 32-bit MCU with Flash memory, six 16-bit timers, ADC and seve.

STM32F101x8 Features

* Core: ARM 32-bit Cortex™-M3 CPU
* 36 MHz, 45 DMIPS with 1.25 DMIPS/MHz
* Single-cycle multiplication and hardware division
* Nested interrupt controller with 43 maskable interrupt channels
* Interrupt processing (down to 6 CPU cycles) with tail chaining Memorie

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32F101x8, STM32F101C6. Please refer to the document for exact specifications by model.

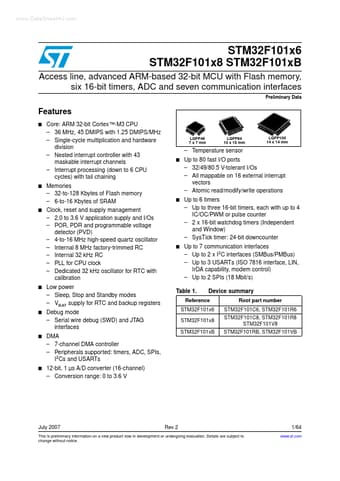

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32F101x8, STM32F101C6
Manufacturer
STMicroelectronics ↗
File Size
965.40 KB
Datasheet
STM32F101C6_STMicroelectronics.pdf
Description
(STM32F101xx) advanced ARM-based 32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32F101x8, STM32F101C6.
Please refer to the document for exact specifications by model.
