STM32F302CB, STM32F302xB ARM Cortex-M4F 32b MCU+FPU

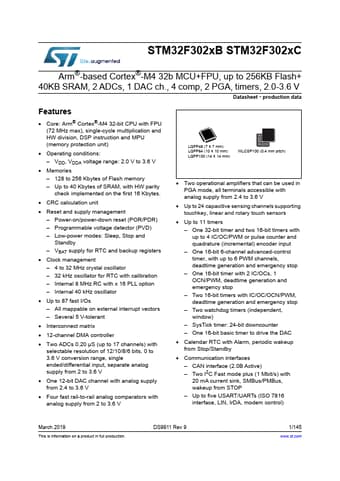

📥 Download Datasheet Datasheet Preview Page 1

Description

STM32F302xB STM32F302xC Arm®-based Cortex®-M4 32b MCU+FPU, up to 256KB Flash+ 40KB SRAM, 2 ADCs, 1 DAC ch., 4 comp, 2 PGA, timers, 2.0-3.6 V Datashee.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32F302CB, STM32F302xB. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STM32F302CB, STM32F302xB
Manufacturer
STMicroelectronics ↗
File Size
1.68 MB
Datasheet
STM32F302xB-STMicroelectronics.pdf
Description
ARM Cortex-M4F 32b MCU+FPU
Note
This datasheet PDF includes multiple part numbers: STM32F302CB, STM32F302xB.
Please refer to the document for exact specifications by model.

Features

* Core: Arm® Cortex®-M4 32-bit CPU with FPU (72 MHz max), single-cycle multiplication and HW division, DSP instruction and MPU (memory protection unit)
* Operating conditions:
* VDD, VDDA voltage range: 2.0 V to 3.6 V
* Memories
* 128 to 256 Kbytes of Flash me
