STM32G050C6 - 32-bit MCU

General Description

.

.

.

12 3.1 Arm® Cortex®-M0+ core with MPU

.

.

.

Key Features

  • Core: Arm® 32-bit Cortex®-M0+ CPU, frequency up to 64 MHz.
  • -40°C to 85°C operating temperature.
  • Memories.
  • Up to 64 Kbytes of Flash memory with protection and securable area.
  • 18 Kbytes of SRAM (16 Kbytes with HW parity check).
  • CRC calculation unit.
  • Reset and power management.
  • Voltage range: 2.0 V to 3.6 V.
  • Power-on/Power-down reset (POR/PDR).
  • Low-power modes: Sleep, Stop, Standby.
  • VBAT supply for R.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STM32F103ZE ARM-CM3 Board User Manual EMBEST
STM301N N-Channel MOSFET SamHop Microelectronics
STM-1116 800 - 1000 MHz High Linearity Active Transmit Mixer ETC
STM-2016 1800 - 2200 MHz High Linearity Silicon Germanium Active Transmit Mixer Stanford Microdevices
STM-3116 High Linearity Active Transmit Mixer Sirenza Microdevices

Other Datasheets by STMicroelectronics

Part Number Description
STM32G050C8 32-bit MCU
STM32G050F6 32-bit MCU
STM32G050K6 32-bit MCU
STM32G050K8 32-bit MCU
STM32G051C6 Arm Cortex-M0+ 32-bit MCU

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

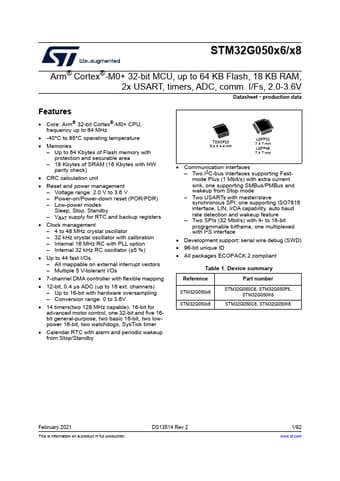

STM32G050x6/x8 Arm® Cortex®-M0+ 32-bit MCU, up to 64 KB Flash, 18 KB RAM, 2x USART, timers, ADC, comm. I/Fs, 2.0-3.6V Datasheet - production data Features • Core: Arm® 32-bit Cortex®-M0+ CPU, frequency up to 64 MHz • -40°C to 85°C operating temperature • Memories – Up to 64 Kbytes of Flash memory with protection and securable area – 18 Kbytes of SRAM (16 Kbytes with HW parity check) • CRC calculation unit • Reset and power management – Voltage range: 2.0 V to 3.
