STM32G0B0KE - 32-bit MCU

Description

.

.

.

12 3.1 Arm® Cortex®-M0+ core with MPU

.

.

.

Features

  • Core: Arm® 32-bit Cortex®-M0+ CPU, frequency up to 64 MHz.
  • -40°C to 85°C operating temperature.
  • Memories.
  • 512 Kbytes of Flash memory with protection, two banks, read-while-write support.
  • 144 Kbytes of SRAM (128 Kbytes with HW parity check).
  • CRC calculation unit.
  • Reset and power management.
  • Voltage range: 2.0 V to 3.6 V.
  • Power-on/Power-down reset (POR/PDR).
  • Low-power modes: Sleep, Stop, Standby.
  • VB.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STM32F103ZE ARM-CM3 Board User Manual EMBEST
STM301N N-Channel MOSFET SamHop Microelectronics
STM-1116 800 - 1000 MHz High Linearity Active Transmit Mixer ETC
STM-2016 1800 - 2200 MHz High Linearity Silicon Germanium Active Transmit Mixer Stanford Microdevices
STM-3116 High Linearity Active Transmit Mixer Sirenza Microdevices

Other Datasheets by STMicroelectronics

Part Number Description
STM32G0B0CE 32-bit MCU
STM32G0B0RE 32-bit MCU
STM32G0B0VE 32-bit MCU
STM32G0B1CB 32-bit MCU
STM32G0B1CC 32-bit MCU

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

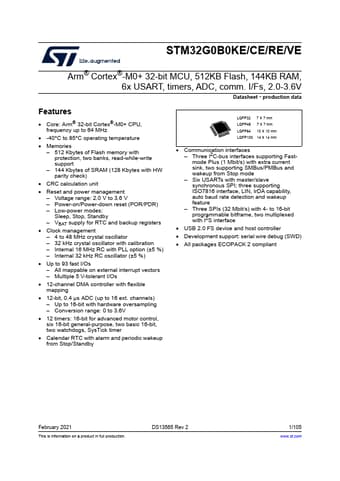

STM32G0B0KE/CE/RE/VE Arm® Cortex®-M0+ 32-bit MCU, 512KB Flash, 144KB RAM, 6x USART, timers, ADC, comm. I/Fs, 2.0-3.6V Datasheet - production data Features • Core: Arm® 32-bit Cortex®-M0+ CPU, frequency up to 64 MHz • -40°C to 85°C operating temperature • Memories – 512 Kbytes of Flash memory with protection, two banks, read-while-write support – 144 Kbytes of SRAM (128 Kbytes with HW parity check) • CRC calculation unit • Reset and power management – Voltage range: 2.0 V to 3.
