STM32L152QD, STM32L151QD Ultra-low-power 32-bit MCU

STM32L152QD Description

STM32L151xD STM32L152xD Ultra-low-power 32-bit MCU Arm® Cortex®-M3, 384KB Flash, 48KB SRAM, 12KB EEPROM, LCD, USB, ADC, DAC, memory I/F Datasheet - p.

STM32L152QD Features

* Includes ST state-of-the-art patented technology
* Ultra-low-power platform
* 1.65 V to 3.6 V power supply
* -40°C to 105°C temperature range
* 305 nA Standby mode (3 wakeup pins)
* 1.15 µA Standby mode + RTC
* 0.475 µA Stop mode (16 wakeup lines)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32L152QD, STM32L151QD. Please refer to the document for exact specifications by model.

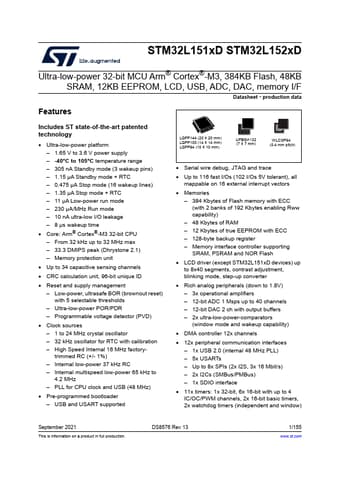

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32L152QD, STM32L151QD
Manufacturer
STMicroelectronics ↗
File Size
2.21 MB
Datasheet
STM32L151QD-STMicroelectronics.pdf
Description
Ultra-low-power 32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32L152QD, STM32L151QD.
Please refer to the document for exact specifications by model.
