STM32L152QE, STM32L151QE Ultra-low-power 32-bit MCU

STM32L152QE Description

STM32L151xE STM32L152xE Ultra-low-power 32-bit MCU Arm®-based Cortex®-M3 with 512KB Flash, 80KB SRAM, 16KB EEPROM, LCD, USB, ADC, DAC Datasheet - pro.

STM32L152QE Features

* Includes ST state-of-the-art patented technology
* Ultra-low-power platform
* 1.65 V to 3.6 V power supply
* -40 °C to 105 °C temperature range
* 290 nA Standby mode (3 wakeup pins)
* 1.11 µA Standby mode + RTC
* 560 nA Stop mode (16 wakeup lines)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32L152QE, STM32L151QE. Please refer to the document for exact specifications by model.

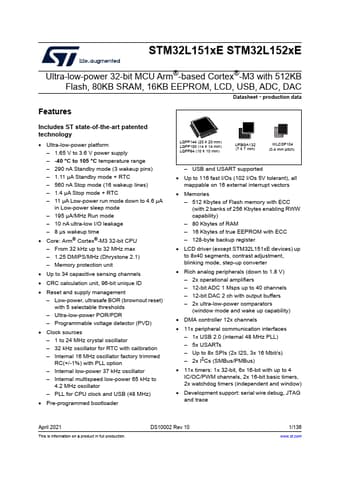

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32L152QE, STM32L151QE
Manufacturer
STMicroelectronics ↗
File Size
1.98 MB
Datasheet
STM32L151QE-STMicroelectronics.pdf
Description
Ultra-low-power 32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32L152QE, STM32L151QE.
Please refer to the document for exact specifications by model.
