STM32L152R8, STM32L15xx6 Ultra-low-power 32-bit MCU

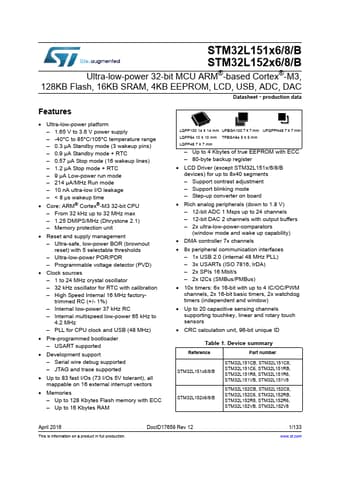

📥 Download Datasheet  Datasheet Preview Page 1

Description

STM32L151x6/8/B STM32L152x6/8/B Ultra-low-power 32-bit MCU ARM®-based Cortex®-M3, 128KB Flash, 16KB SRAM, 4KB EEPROM, LCD, USB, ADC, DAC Datasheet - p.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32L152R8, STM32L15xx6. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STM32L152R8, STM32L15xx6
Manufacturer
STMicroelectronics ↗
File Size
1.28 MB
Datasheet
STM32L15xx6_STMicroelectronics.pdf
Description
Ultra-low-power 32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32L152R8, STM32L15xx6.
Please refer to the document for exact specifications by model.

Features

* Ultra-low-power platform
* 1.65 V to 3.6 V power supply
* -40°C to 85°C/105°C temperature range
* 0.3 µA Standby mode (3 wakeup pins)
* 0.9 µA Standby mode + RTC
* 0.57 µA Stop mode (16 wakeup lines)
* 1.2 µA Stop mode + RTC
* 9 µA Lo
