STM32L152RB-A, STM32L151CB-A Ultra-low-power 32-bit MCU

STM32L152RB-A Description

STM32L151x6/8/B-A STM32L152x6/8/B-A Ultra-low-power 32-bit MCU ARM®-based Cortex®-M3, 128KB Flash, 32KB SRAM, 4KB EEPROM, LCD, USB, ADC, DAC Datasheet.

STM32L152RB-A Features

* Ultra-low-power platform
* 1.65 V to 3.6 V power supply
* -40°C to 105°C temperature range
* 0.28 µA Standby mode (3 wakeup pins)
* 1.11 µA Standby mode + RTC
* 0.44 µA Stop mode (16 wakeup lines)
* 1.38 µA Stop mode + RTC
* 10.9 µA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32L152RB-A, STM32L151CB-A. Please refer to the document for exact specifications by model.

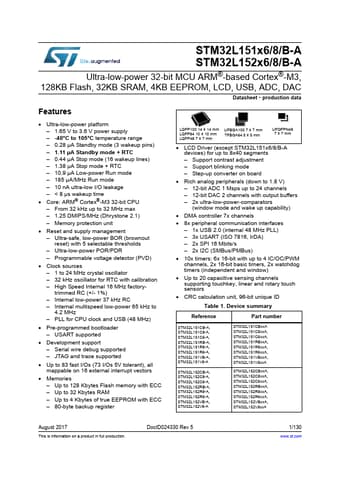

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32L152RB-A, STM32L151CB-A
Manufacturer
STMicroelectronics ↗
File Size
1.69 MB
Datasheet
STM32L151CB-A-STMicroelectronics.pdf
Description
Ultra-low-power 32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32L152RB-A, STM32L151CB-A.
Please refer to the document for exact specifications by model.
