STM32L152RCT6A, STM32L151QC Ultra-low-power 32b MCU

STM32L152RCT6A Description

STM32L15xQC STM32L15xRC-A STM32L15xVC-A STM32L15xZC Ultra-low-power 32-bit MCU Arm®-based Cortex®-M3, 256KB Flash, 32KB SRAM, 8KB EEPROM, LCD, USB, AD.

STM32L152RCT6A Features

* Ultra-low-power platform
* 1.65 V to 3.6 V power supply
* -40°C to 105°C temperature range
* 305 nA standby mode (3 wakeup pins)
* 1.15 µA standby mode + RTC
* 0.475 µA stop mode (16 wakeup lines)
* 1.35 µA stop mode + RTC
* 11 µA Low

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32L152RCT6A, STM32L151QC. Please refer to the document for exact specifications by model.

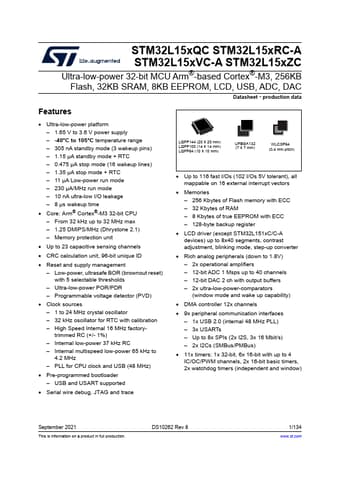

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32L152RCT6A, STM32L151QC
Manufacturer
STMicroelectronics ↗
File Size
1.99 MB
Datasheet
STM32L151QC-STMicroelectronics.pdf
Description
Ultra-low-power 32b MCU
Note
This datasheet PDF includes multiple part numbers: STM32L152RCT6A, STM32L151QC.
Please refer to the document for exact specifications by model.
