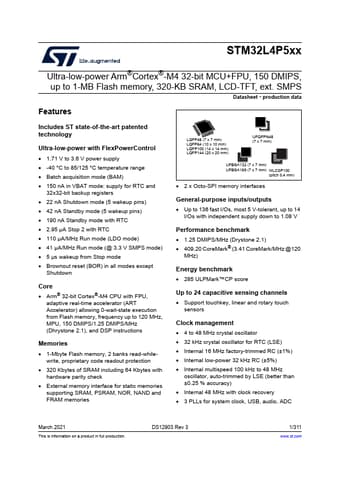

STM32L4P5AE - 32-bit MCU

STMicroelectronics

Datasheet Details

Part number	STM32L4P5AE
Manufacturer	STMicroelectronics ↗
File Size	5.94 MB
Description	32-bit MCU
Datasheet	STM32L4P5AE-STMicroelectronics.pdf

. 19 3.1 Arm® Cortex®-M4 core with FPU . . .

Includes ST state-of-the-art patented technology Ultra-low-power with FlexPowerControl.
1.71 V to 3.6 V power supply.
-40 °C to 85/125 °C temperature range.
Batch acquisition mode (BAM).
150 nA in VBAT mode: supply for RTC and 32x32-bit backup registers.
22 nA Shutdown mode (5 wakeup pins).
42 nA Standby mode (5 wakeup pins).
190 nA Standby mode with RTC.
2.95 μA Stop 2 with RTC.
110 μA/MHz Run mode (LDO mode).
