STM32L4P5RE, STM32L4P5AE 32-bit MCU

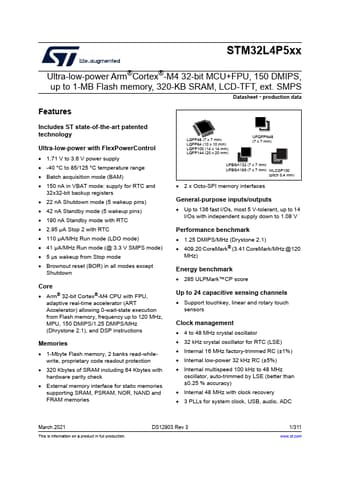

📥 Download Datasheet  Datasheet Preview Page 1

Description

STM32L4P5xx Ultra-low-power Arm®Cortex®-M4 32-bit MCU+FPU, 150 DMIPS, up to 1-MB Flash memory, 320-KB SRAM, LCD-TFT, ext.SMPS Datasheet - production.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32L4P5RE, STM32L4P5AE. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STM32L4P5RE, STM32L4P5AE
Manufacturer
STMicroelectronics ↗
File Size
5.94 MB
Datasheet
STM32L4P5AE-STMicroelectronics.pdf
Description
32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32L4P5RE, STM32L4P5AE.
Please refer to the document for exact specifications by model.

Features

* Includes ST state-of-the-art patented technology Ultra-low-power with FlexPowerControl
* 1.71 V to 3.6 V power supply
* -40 °C to 85/125 °C temperature range
* Batch acquisition mode (BAM)
* 150 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
