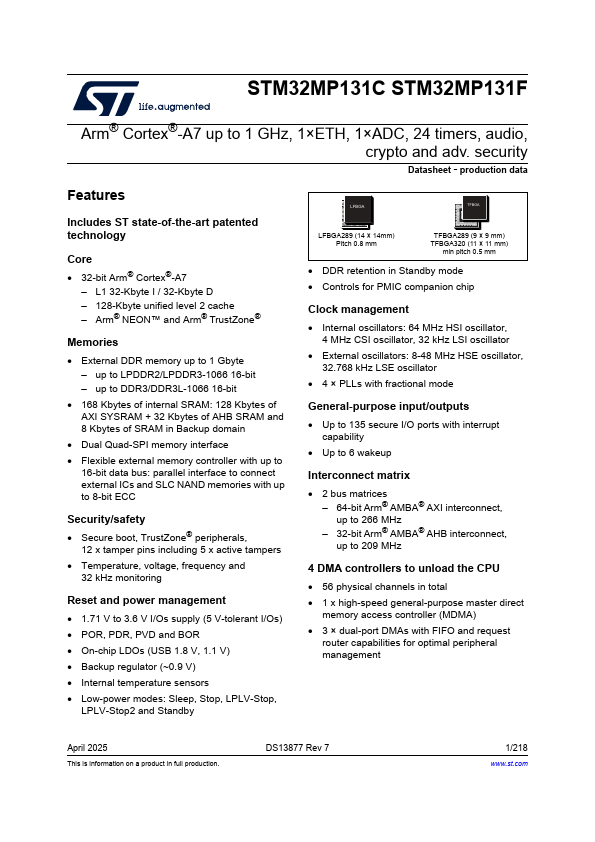

STM32MP131C - 32-bit RISC processor

STMicroelectronics

Datasheet Details

Part number	STM32MP131C
Manufacturer	STMicroelectronics ↗
File Size	2.63 MB
Description	32-bit RISC processor
Datasheet	STM32MP131C-STMicroelectronics.pdf

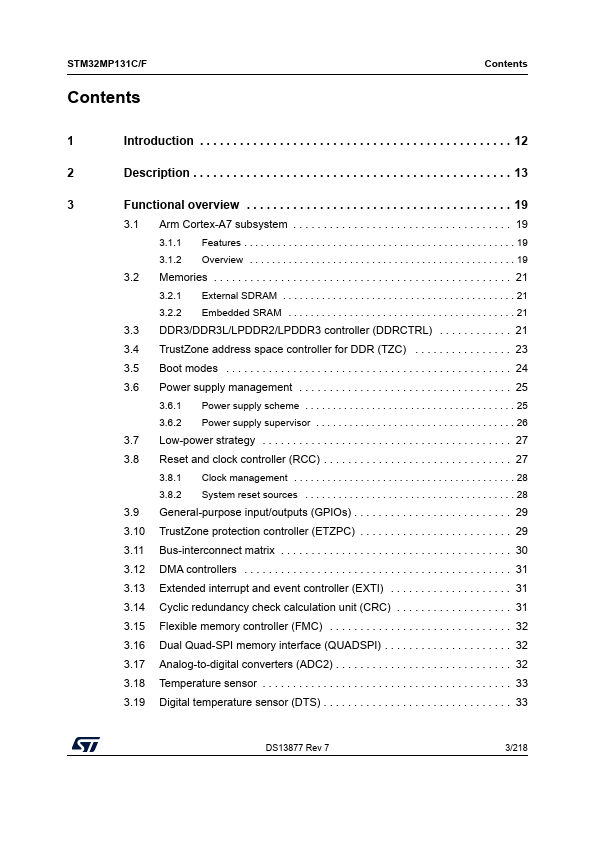

. 19 3.1 Arm Cortex-A7 subsystem .

Includes ST state-of-the-art patented technology Core.
32-bit Arm® Cortex®-A7.
L1 32-Kbyte I / 32-Kbyte D.
128-Kbyte unified level 2 cache.
Arm® NEON™ and Arm® TrustZone® Memories.
External DDR memory up to 1 Gbyte.
up to LPDDR2/LPDDR3-1066 16-bit.
up to DDR3/DDR3L-1066 16-bit.
168 Kbytes of internal SRAM: 128 Kbytes of AXI SYSRAM + 32 Kbytes of AHB SRAM and 8 Kbytes of SRAM in Backup domain.
Dual Quad-SPI memory in.
