STM32N645L0, STM32N645A0 MCU

STMicroelectronics

Description

STM32N6x5xx STM32N6x7xx Arm® Cortex®-M55-based MCU, with ST Neural-ART Accelerator, H264 encoder, Neo-Chrom 2.5D GPU, 4.2 Mbyte-contiguous SRAM Datas.

📥 Download Datasheet

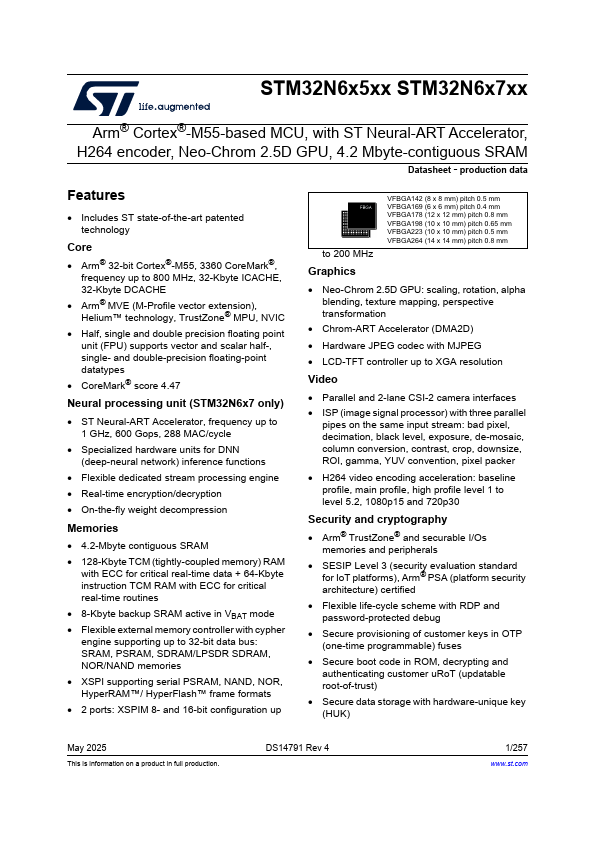

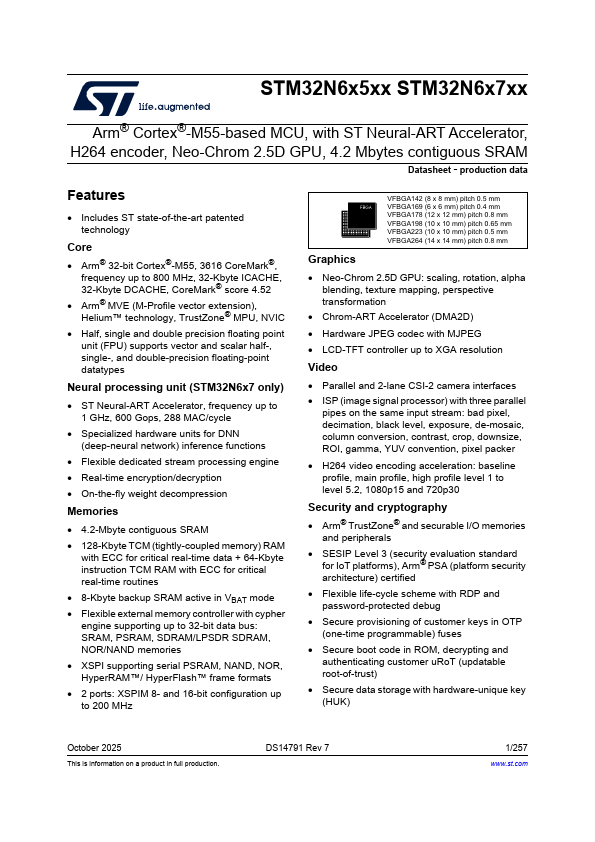

STM32N645L0 Datasheet Preview — This datasheet PDF includes multiple part numbers: STM32N645L0, STM32N645A0. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STM32N645L0, STM32N645A0
Manufacturer: STMicroelectronics ↗
File Size: 2.94 MB
Datasheet: STM32N645A0-STMicroelectronics.pdf
Description: MCU
Note: This datasheet PDF includes multiple part numbers: STM32N645L0, STM32N645A0.
Please refer to the document for exact specifications by model.

Features

* Includes ST state-of-the-art patented technology Core
* Arm® 32-bit Cortex®-M55, 3360 CoreMark®, frequency up to 800 MHz, 32-Kbyte ICACHE, 32-Kbyte DCACHE
* Arm® MVE (M-Profile vector extension), Helium™ technology, TrustZone® MPU, NVIC
* Half, single and double pre
