STM32U073K8-STMicroelectronics.pdf
Datasheet Details
Part number:
STM32U073CC, STM32U073K8
Manufacturer:
File Size:
2.21 MB
Description:
32-bit mcu.
Note:
This datasheet PDF includes multiple part numbers: STM32U073CC, STM32U073K8.
Please refer to the document for exact specifications by model.
STM32U073CC, STM32U073K8, 32-bit MCU
functional overview, pin assignment and definition, electrical characteristics, packaging and ordering information.
It must be read in conjunction with the STM32U073x8/B/C reference manual (RM0503).
For information on the device errata with respect to the datasheet and reference manual, refer to th

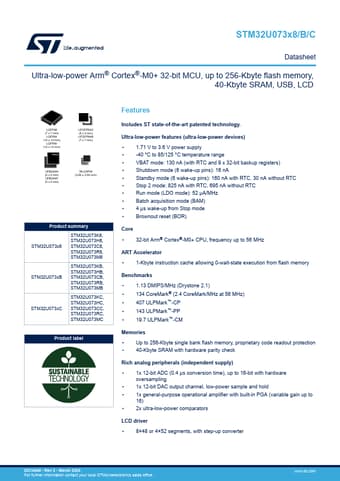

STM32U073x8/B/C Datasheet Ultra-low-power Arm® Cortex®-M0+ 32-bit MCU, up to 256-Kbyte flash memory, 40-Kbyte SRAM, USB, LCD LQFP48 (7 x 7 mm) LQFP64 (10 x 10 mm) LQFP80 (12 x 12 mm) FBGA UFQFPN32 (5 x 5 mm) UFQFPN48 (7 x 7 mm) UFBGA64 (5 x 5 mm) UFBGA81 (5 x 5 mm) WLCSP42 (2.82 x 2.93 mm) Product summary STM32U073x8 STM32U073K8, STM32U073H8, STM32U073C8, STM32U073R8, STM32U073M8 STM32U073xB STM32U073KB, STM32U073HB, STM32U073CB, STM32U073RB, STM32U073MB STM32U073xC STM32U073KC, STM32
STM32U073CC Features
* Includes ST state-of-the-art patented technology. Ultra-low-power features (ultra-low-power devices)
* 1.71 V to 3.6 V power supply
* -40 °C to 85/125 °C temperature range
* VBAT mode: 130 nA (with RTC and 9 x 32-bit backup registers)
* Shutdown mode (6 wake-up pins):
