STM8AF6266, STM8AF6246 Automotive 8-bit MCU

STM8AF6266 Description

STM8AF6246 STM8AF6248 STM8AF6266 STM8AF6268 Automotive 8-bit MCU, with up to 32 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 .

STM8AF6266 Features

* AEC-Q10x qualified
* Core
* Max fCPU: 16 MHz
* Advanced STM8A core with Harvard architecture and 3-stage pipeline
* Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark
* Memories
* Flash Program

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM8AF6266, STM8AF6246. Please refer to the document for exact specifications by model.

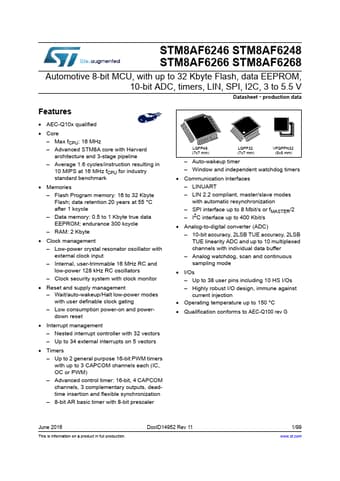

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM8AF6266, STM8AF6246
Manufacturer
STMicroelectronics ↗
File Size
874.55 KB
Datasheet
STM8AF6246-STMicroelectronics.pdf
Description
Automotive 8-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM8AF6266, STM8AF6246.
Please refer to the document for exact specifications by model.
