STM8AF6213 - Automotive 8-bit MCU

STMicroelectronics

📥 Download Datasheet

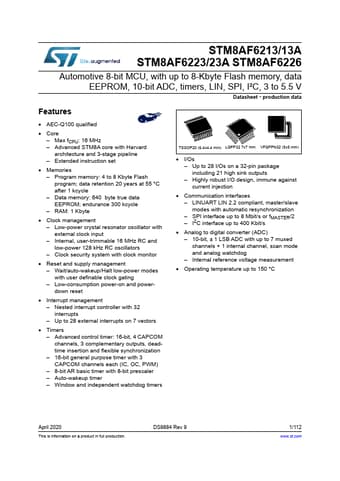

STM8AF6213 Datasheet Preview — Preview of STM8AF6213 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: STM8AF6213
Manufacturer: STMicroelectronics ↗
File Size: 2.52 MB
Datasheet: STM8AF6213-STMicroelectronics.pdf
Description: Automotive 8-bit MCU

STM8AF6213 Product details

Description

. 11 4 Product overview . . 12 4.1.2 Addressing

Features

AEC-Q100 qualified.
Core.
Max fCPU: 16 MHz.
Advanced STM8A core with Harvard architecture and 3-stage pipeline.
Extended instruction set.
Memories.
Program memory: 4 to 8 Kbyte Flash program; data retention 20 years at 55 °C after 1 kcycle.
Data memory: 640 byte true data EEPROM; endurance 300 kcycle.
RAM: 1 Kbyte.
Clock management.
Low-power crystal resonator oscillator with external clock input.
