STM8AF6246 - Automotive 8-bit MCU

STMicroelectronics

📥 Download Datasheet

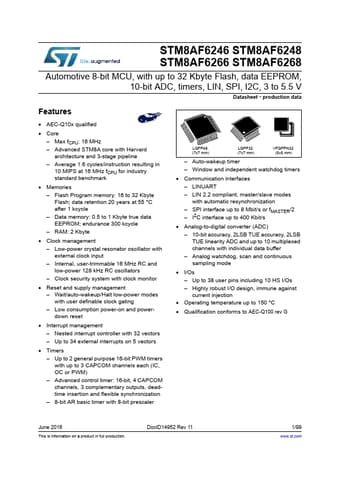

STM8AF6246 Datasheet Preview — Preview of STM8AF6246 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: STM8AF6246
Manufacturer: STMicroelectronics ↗
File Size: 874.55 KB
Datasheet: STM8AF6246-STMicroelectronics.pdf
Description: Automotive 8-bit MCU

STM8AF6246 Product details

Features

AEC-Q10x qualified.
Core.
Max fCPU: 16 MHz.
Advanced STM8A core with Harvard architecture and 3-stage pipeline.
Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark.
Memories.
Flash Program memory: 16 to 32 Kbyte Flash; data retention 20 years at 55 °C after 1 kcycle.
Data memory: 0.5 to 1 Kbyte true data EEPROM; endurance 300 kcycle.
RAM: 2 Kbyte.
Clock manage.
