STM8AF6226, STM8AF6213 Automotive 8-bit MCU

STMicroelectronics

Description

STM8AF6213/13A STM8AF6223/23A STM8AF6226 Automotive 8-bit MCU, with up to 8-Kbyte Flash memory, data EEPROM, 10-bit ADC, timers, LIN, SPI, I²C, 3 to 5.

📥 Download Datasheet

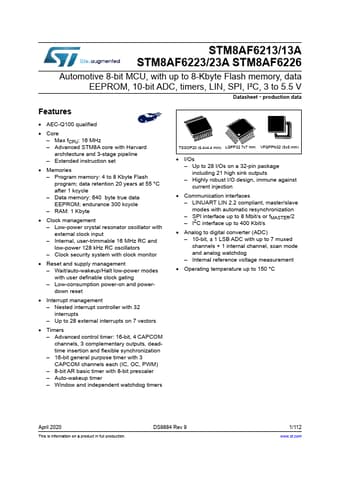

STM8AF6226 Datasheet Preview — This datasheet PDF includes multiple part numbers: STM8AF6226, STM8AF6213. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STM8AF6226, STM8AF6213
Manufacturer: STMicroelectronics ↗
File Size: 2.52 MB
Datasheet: STM8AF6213-STMicroelectronics.pdf
Description: Automotive 8-bit MCU
Note: This datasheet PDF includes multiple part numbers: STM8AF6226, STM8AF6213.
Please refer to the document for exact specifications by model.

Features

* AEC-Q100 qualified
* Core
* Max fCPU: 16 MHz
* Advanced STM8A core with Harvard architecture and 3-stage pipeline
* Extended instruction set
* Memories
* Program memory: 4 to 8 Kbyte Flash program; data retention 20 years at 55 °C after 1 kcy
