STM8AF6286, STM8AF5268 Automotive 8-bit MCU

STM8AF6286 Description

STM8AF526x/8x/Ax STM8AF6269/8x/Ax Automotive 8-bit MCU, with up to 128 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, CAN, USART, SPI, I2C, 3 to 5.

STM8AF6286 Features

* AEC-Q10x qualified
* Core
* Max fCPU: 24 MHz
* Advanced STM8A core with Harvard architecture and 3-stage pipeline
* Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark
* Memories
* Program memory

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM8AF6286, STM8AF5268. Please refer to the document for exact specifications by model.

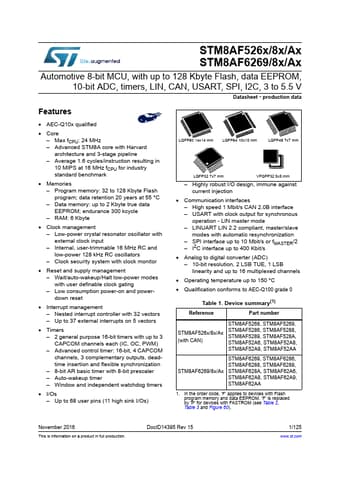

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM8AF6286, STM8AF5268
Manufacturer
STMicroelectronics ↗
File Size
1.04 MB
Datasheet
STM8AF5268-STMicroelectronics.pdf
Description
Automotive 8-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM8AF6286, STM8AF5268.
Please refer to the document for exact specifications by model.
