STM8S207C6, STM8S20xxx - 24 MHz STM8S 8-bit MCU

STMicroelectronics

📥 Download Datasheet

STM8S207C6 Datasheet Preview — This datasheet PDF includes multiple part numbers: STM8S207C6, STM8S20xxx. Please refer to the document for exact specifications by model.

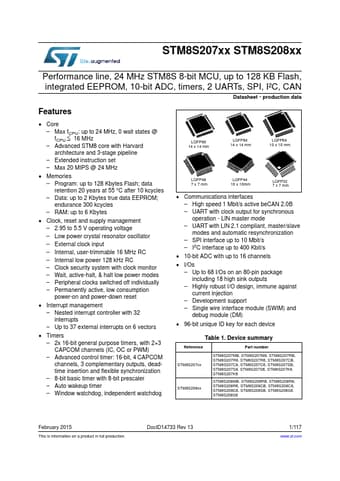

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STM8S207C6, STM8S20xxx
Manufacturer	STMicroelectronics ↗
File Size	951.68 KB
Description	24 MHz STM8S 8-bit MCU
Datasheet	STM8S20xxx_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM8S207C6, STM8S20xxx. Please refer to the document for exact specifications by model.

STM8S207C6 Product details

Features

Core.
Max fCPU: up to 24 MHz, 0 wait states @ fCPU 16 MHz.
Advanced STM8 core with Harvard architecture and 3-stage pipeline.
Extended instruction set.
Max 20 MIPS @ 24 MHz.
Memories.
Program: up to 128 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles.
Data: up to 2 Kbytes true data EEPROM; endurance 300 kcycles.
RAM: up to 6 Kbytes.
Clock, reset and supply management.
2.95 to 5.5 V operatin.
