STM811, STM809 - Reset Circuit

ST Microelectronics

Datasheet Details

Part number	STM811, STM809
Manufacturer	STMicroelectronics ↗
File Size	413.20 KB
Description	Reset Circuit
Datasheet	STM809_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM811, STM809. Please refer to the document for exact specifications by model.

. 7 2.1 Reset output . . .

Precision monitoring of 3 V, 3.3 V, and 5 V supply voltages.
Two output configurations.
Push-pull RST output (STM809/811).
Push-pull RST output (STM810/812).
140 ms reset pulse width (min).
Low supply current - 6 µA (typ).
Guaranteed RST/RST assertion down to VCC = 1.0 V.
Operating temperature:.
40 °C to 85 °C (industrial grade).

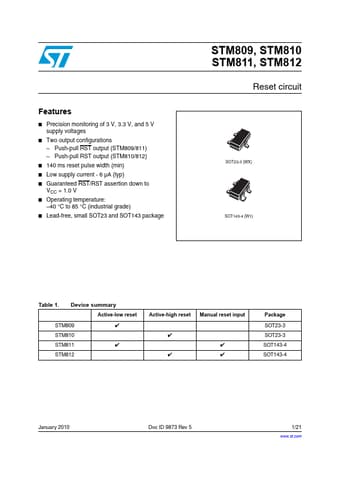

Lead-free, small SOT23 and SOT143 package STM809, STM810 STM811, STM812 Reset circuit SOT23-3 (WX) SOT143.
