STM813L

5V Supervisor

STM813L Features

* 5 V operating voltage

* Precision VCC monitor

* STM705/707/813L

* 4.50 V ≤ VRST ≤ 4.75 V

* STM706/708

* 4.25 ≤ VRST ≤ 4.50 V

* RST and RST outputs Table 1. Device summary Watchdog input Watchdog output (1) Active-low Active-high Manual r

STM813L General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2 Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.1 MR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..

STM813L Datasheet (717.90 KB)

Preview of STM813L PDF

Datasheet Details

Part number:

STM813L

Manufacturer:

STMicroelectronics ↗

File Size:

717.90 KB

Description:

5v supervisor.

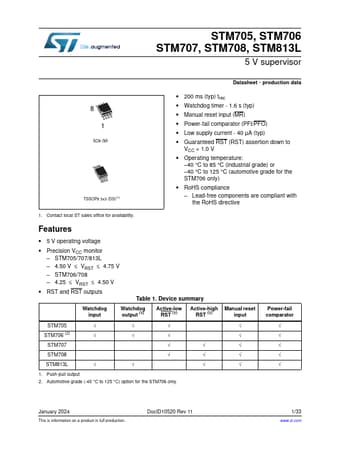

STM705, STM706 STM707, STM708, STM813L 5 V supervisor Datasheet - production data 8 1 SO8 (M) TSSOP8 3x3 (DS)(1)

* 200 ms (typ) trec
