STM8300 Datasheet (SamHop) - Dual Enhancement Mode Field Effect Transistor

STM8300, Dual Enhancement Mode Field Effect Transistor

Green Product STM8300 Ver 1.0 S a mHop Microelectronics C orp.

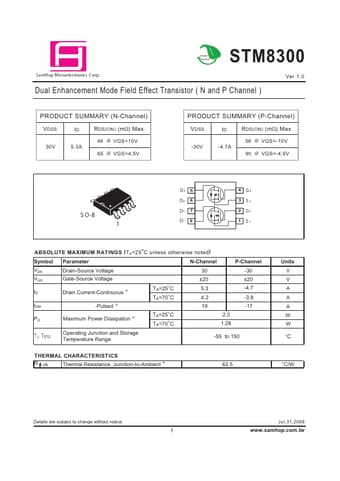

Dual Enhancement Mode Field Effect Transistor ( N and P Channel ) PRODUCT SUMMARY (N-Channel) V DSS 30V PRODUCT SUMMARY (P-Channel) V DSS -30V ID 5.3A R DS(ON) (m Ω) Max 46 @ VGS=10V ID -4.7A R DS(ON) (m Ω) Max 56 @ VGS=-10V 90 @ VGS=-4.5V 65 @ VGS=4.5V D2 D2 5 6 7 8 4 3 2 1 G2 S2 G1 S1 S O-8 1 D1 D1 ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM PD TJ, TSTG Parameter Drain-Source
