STM8319, Dual Enhancement Mode Field Effect Transistor

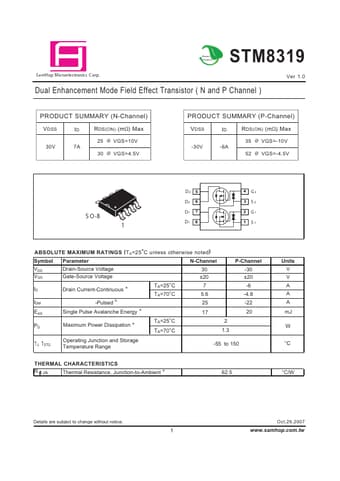

Green Product STM8319 Ver 1.0 S a mHop Microelectronics C orp.

Dual Enhancement Mode Field Effect Transistor ( N and P Channel ) PRODUCT SUMMARY (N-Channel) V DSS 30V PRODUCT SUMMARY (P-Channel) V DSS -30V ID 7A R DS(ON) (m Ω) Max 25 @ VGS=10V ID -6A R DS(ON) (m Ω) Max 35 @ VGS=-10V 52 @ VGS=-4.5V 30 @ VGS=4.5V D2 D2 5 6 7 8 4 3 2 1 G2 S2 G1 S1 S O-8 1 D1 D1 ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM EAS PD TJ, TSTG Parameter Drain-Source
