STMIPID02

Dual mode MIPI CSI-2 / SMIA CCP2 de-serializer

STMIPID02 Features

* Dual mode camera de-serializer

* MIPI CSI-2 receivers

* Two-camera interface support

* One 1.6 Gbps dual data lane receiver for main camera with selectable 1/2 lane operation

* One 800 Mbps single data lane receiver for second camera

* Each MIPI D-PH

STMIPID02 General Description

The STMIPID02 is a dual mode MIPI CSI-2 / SMIA CCP2 de-serializer targeted at mobile camera phone applications. Manufactured using ST 65 nm process, it integrates two MIPI CSI-2 / SMIA CCP2 receivers. The STMIPID02 can then support the main and the second cameras of a mobile camera phone. One of the.

STMIPID02 Datasheet (2.02 MB)

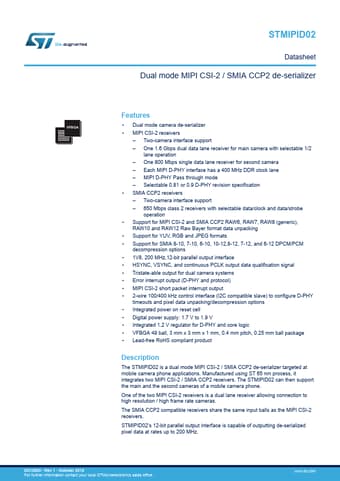

Preview of STMIPID02 PDF

Datasheet Details

Part number:

STMIPID02

Manufacturer:

STMicroelectronics ↗

File Size:

2.02 MB

Description:

Dual mode mipi csi-2 / smia ccp2 de-serializer.
