STO47N60M6

N-channel Power MOSFET

STO47N60M6 Features

* Order code VDS RDS(on) max. ID STO47N60M6 600 V 80 mΩ 36 A

* Reduced switching losses

* Lower RDS(on) per area vs previous generation

* Low gate input resistance

* 100% avalanche tested

* Zener-protected

* Excellent switching performance thank

STO47N60M6 General Description

The new MDmesh M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. STMicroelectronics builds on the previous generation of MDmesh devices through its new M6 technology, which combines excellent RDS(on) per area improvement with one .

STO47N60M6 Datasheet (1.52 MB)

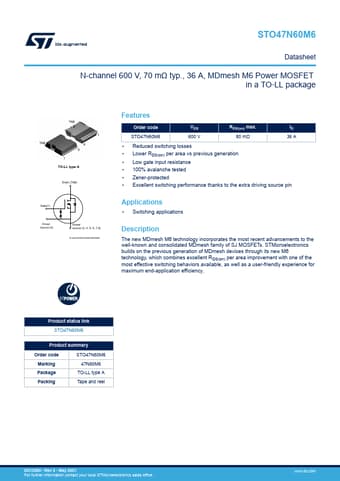

Preview of STO47N60M6 PDF

Datasheet Details

Part number:

STO47N60M6

Manufacturer:

STMicroelectronics ↗

File Size:

1.52 MB

Description:

N-channel power mosfet.
STO47N60M6 Datasheet N-channel 600 V, 70 mΩ typ., 36 A, MDmesh M6 Power MOSFET in a TO‑LL package TO-LL type A Drain (TAB) Gate(1) Driver source (2.
