STO52N60DM6 - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

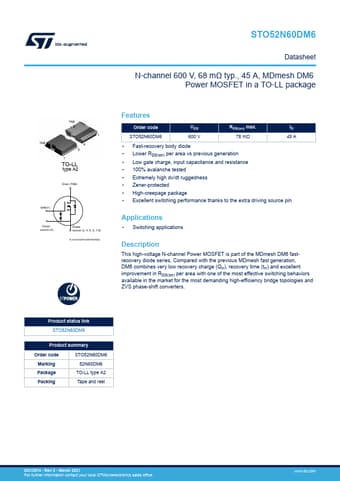

STO52N60DM6 Datasheet Preview — Preview of STO52N60DM6 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STO52N60DM6
Manufacturer	STMicroelectronics ↗
File Size	1.52 MB
Description	N-channel Power MOSFET
Datasheet	STO52N60DM6-STMicroelectronics.pdf

STO52N60DM6 Product details

Description

This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series.

Features

Order code VDS RDS(on) max. ID STO52N60DM6 600 V 78 mΩ 45 A.
Fast-recovery body diode.
Lower RDS(on) per area vs previous generation.
Low gate charge, input capacitance and resistance.
100% avalanche tested.
Extremely high dv/dt ruggedness.
Zener-protected.
High-creepage package.
Excellent switching performance thanks to the extra driving source pin.
