STOD1317B

high efficiency boost converter + LDO

STMicroelectronics

STOD1317B Features

* Operating input voltage range from 2.6 V to 4.8 V

* ±1% output voltage tolerance

* Low output ripple

* True-shutdown

* Short-circuit protection

* Digital low power function

* Very high efficiency at light load thanks to pulse skipping operation

* Very fast line and

STOD1317B General Description

The STOD1317B is a fixed frequency, high efficiency, boost DC-DC converter with cascaded LDO able to provide output voltages ranging from 6 V to 13 V starting with an input voltage from 2.6 V to 4.8 V. The device is designed to supply loads that are very sensitive to output ripple such as AMOLED dis.

STOD1317B Datasheet (901.90 KB)

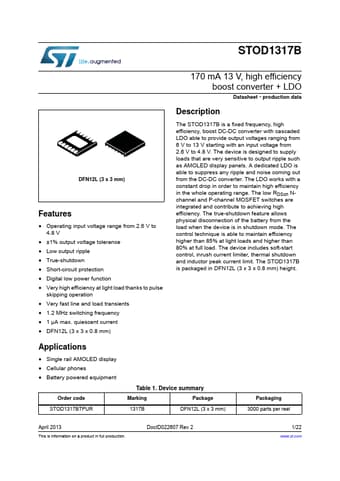

STOD1317B Datasheet Preview — Preview of STOD1317B PDF
