STOD14

700mA dual DC-DC converter

STMicroelectronics

STOD14 Features

* Step-down and inverter converters

* Operating input voltage range from 6 V to 13 V

* Synchronous rectification for both converters

* 700 mA output current

* Fixed positive voltage 4.6 V

* Programmable negative voltage by SWIRE from - 2.4 V to - 6.0 V

* Typical efficienc

STOD14 General Description

The STOD14 is a dual channel DC-DC converter driver for medium-sized AMOLED display panels. It integrates a step-down and an inverting converter in a compact IC design. The excellent efficiency makes it particularly suitable for battery operated products. The high frequency operation allows the valu.

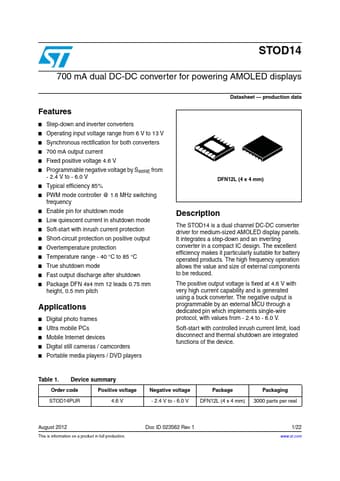

STOD14 Datasheet (693.78 KB)

STOD14 Datasheet Preview — Preview of STOD14 PDF

Datasheet Details

Part number:

STOD14

Manufacturer:

STMicroelectronics ↗

File Size:

693.78 KB

Description:

700ma dual dc-dc converter.
