STP24N65M2 - N-channel MOSFET

STP24N65M2 Description

STB24N65M2, STF24N65M2, STP24N65M2 N-channel 650 V, 0.185 Ω typ., 16 A MDmesh M2 Power MOSFET in D2PAK, TO-220FP and TO-220 packages Datasheet - produ.
These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology.

STP24N65M2 Features

* Order codes STB24N65M2 STF24N65M2 STP24N65M2 VDS 650 V RDS(on) max 0.23 Ω ID 16 A
* Extremely low gate charge
* Excellent output capacitance (Coss) profile
* 100% avalanche tested

📥 Download Datasheet

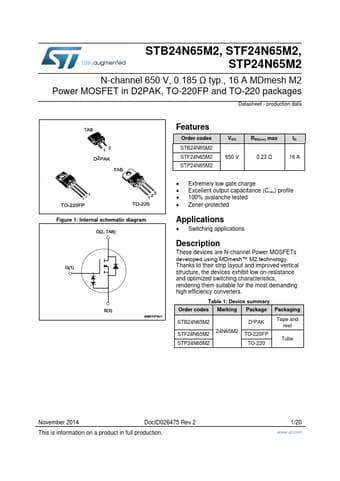

Preview of STP24N65M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
