STP40NF20 - N-channel Power MOSFET

STP40NF20 Description

STP40NF20 - STF40NF20 STB40NF20 - STW40NF20 N-channel 200V - 0.038Ω -40A- D2PAK/TO-220/TO-220FP/TO-247 Low gate charge STripFET™ Power MOSFET .
This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gat.

STP40NF20 Features

* Type STB40NF20 STP40NF20 STF40NF20 STW40NF20 VDSS RDS(on) ID PW 200V

STP40NF20 Applications

* Switching application 3 2 1 TO-220 3 1 D2PAK 3 2 1 TO-220FP TO-247 Figure 1. Internal schematic diagram Table 1. Device summary Order codes STB40NF20 STP40NF20 STF40NF20 STW40NF20 Marking 40NF20 40NF20 40NF20 40NF20 Package D2PAK TO-220 TO-220FP TO-247 Packaging Tape & reel Tube Tube

📥 Download Datasheet

Preview of STP40NF20 PDF

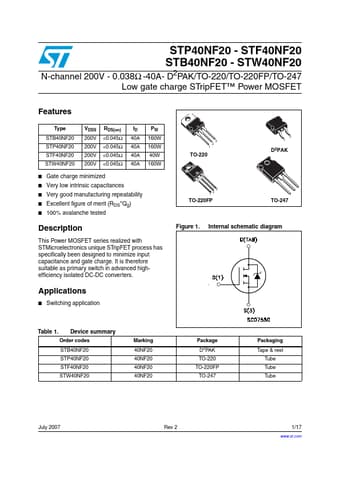

datasheet Preview Page 2 datasheet Preview Page 3
