STP40NF03L - N-CHANNEL POWER MOSFET

STP40NF03L Description

® STP40NF03L N - CHANNEL 30V - 0.020 Ω - 40A TO-220 STripFET™ POWER MOSFET TYPE STP40NF03L s s V DSS 30 V R DS(o n) < 0.022 Ω ID 40 A TYPICAL RD.
This Power MOSFET is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

STP40NF03L Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS 3 1 2 TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR VGS ID ID I DM (
* ) P tot E AS ( 1 ) T st g Tj Parameter Drain-source Voltage

📥 Download Datasheet

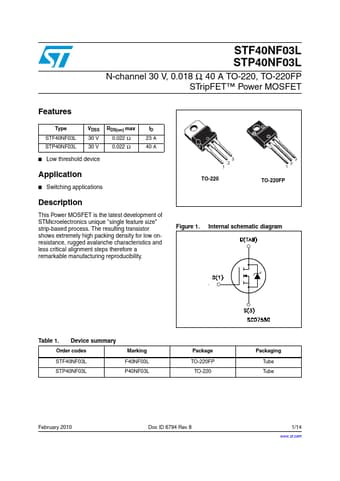

Preview of STP40NF03L PDF
