STP45N10FI, STP45N10 Datasheet - ST Microelectronics

STP45N10FI N-Channel Power MOS Transistor

www.DataSheet4U.com ® STP45N10 STP45N10FI N - CHANNEL 100V - 0.027Ω - 45A - TO-220/TO-220FI POWER MOS TRANSISTOR TYPE STP45N10 STP45N10FI V DSS 100 V 100 V R DS(on) < 0.035 Ω < 0.035 Ω ID 45 A 24 A s s s s s s s s TYPICAL RDS(on) = 0.027 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE HIGH CURRENT CAPABILITY 175 oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 1 2 3 TO-220 ISOWATT220 APPLICATIONS HIGH CURRENT, H.

STP45N10_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STP45N10FI, STP45N10. Please refer to the document for exact specifications by model.

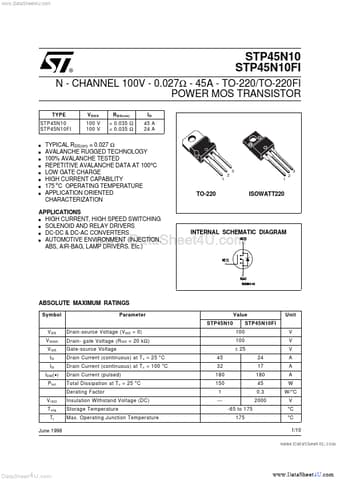

STP45N10FI Datasheet Preview Page 2 STP45N10FI Datasheet Preview Page 3

Datasheet Details

Part number:

STP45N10FI, STP45N10

Manufacturer:

STMicroelectronics ↗

File Size:

455.79 KB

Description:

N-channel power mos transistor.

Note:

This datasheet PDF includes multiple part numbers: STP45N10FI, STP45N10.
Please refer to the document for exact specifications by model.
