STP45L01F - N-Channel Enhancement Mode Field Effect Transistor

STP45L01F Description

Green Product STP45L01F Ver1.0 S a mHop Microelectronics C orp.N-Channel Enhancement Mode Field Effect Transistor PRODUCT SUMMARY V DSS 100V FEAT.

STP45L01F Features

* Super high dense cell design for low R DS(ON). Rugged and reliable. TO-220F Package. ID 40A R DS(ON) (m Ω) Typ 20 @ VGS=10V D G D S G STF SERIES TO-220F S ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM EAS PD TJ, TSTG Parameter Drain-Source Voltage Gate-S

📥 Download Datasheet

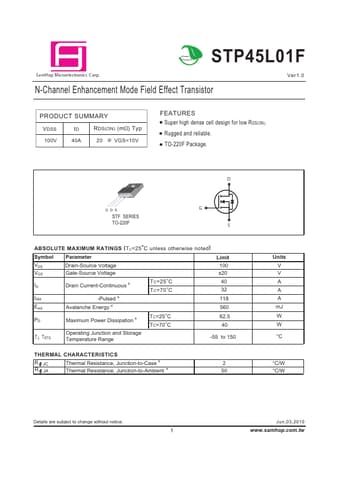

Preview of STP45L01F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP45L01F
Manufacturer
SamHop
File Size
193.31 KB
Datasheet
STP45L01F-SamHop.pdf
Description
N-Channel Enhancement Mode Field Effect Transistor
