STP15L01 - N-Channel Enhancement Mode Field Effect Transistor

STP15L01 Description

r Pr STP15L01/F Ver1.0 S a mHop Microelectronics C orp.N-Channel Enhancement Mode Field Effect Transistor PRODUCT SUMMARY V DSS 100V ID 15A R DS.

STP15L01 Features

* Super high dense cell design for low R DS(ON). Rugged and reliable. TO-220 and TO-220F Package. D G D S G D S G STP SERIES TO-220 STF SERIES TO-220F S ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM E AS PD TJ, TSTG Parameter Drain-Source Voltage Gate-Sour

📥 Download Datasheet

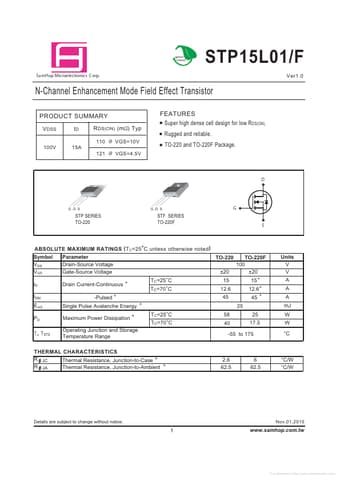

Preview of STP15L01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP15L01
Manufacturer
SamHop
File Size
238.12 KB
Datasheet
STP15L01_SamHop.pdf
Description
N-Channel Enhancement Mode Field Effect Transistor
