STP15810 Datasheet, Mosfet, STMicroelectronics

STP15810 Features

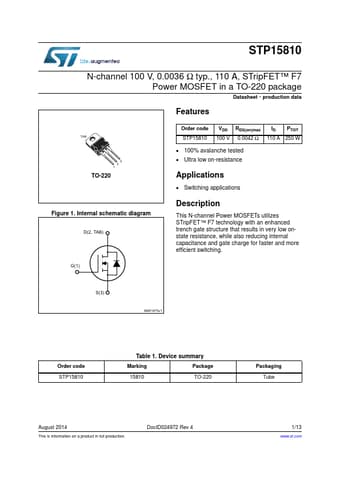

• Mosfet TAB 3 2 1 TO-220 Figure 1. Internal schematic diagram '7$% Order code STP15810 VDS RDS(on)max ID PTOT 100 V 0.0042 Ω 110 A 250 W
• 100% avalanche tested
• Ultra

PDF File Details

Part number:

STP15810

Manufacturer:

STMicroelectronics ↗

File Size:

353.72kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-channel Power MOSFETs utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate

STP15810 Application

• Applications
• Switching applications Description This N-channel Power MOSFETs utilizes STripFET™ F7 technology with an enhanced trench gat
