STP15N65M5 - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

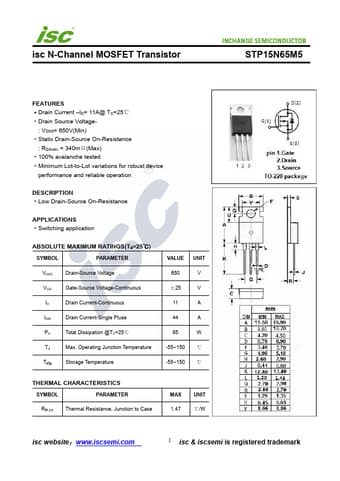

STP15N65M5 Datasheet Preview — Preview of STP15N65M5 PDF

Datasheet Details

Part number	STP15N65M5
Manufacturer	INCHANGE
File Size	271.28 KB
Description	N-Channel MOSFET
Datasheet	STP15N65M5-INCHANGE.pdf

STP15N65M5 Product details

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 650 V ±25 V 11 A 44 A 85 W -55~150 ℃ -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance,

Features

Drain Current.
ID= 11A@ TC=25℃.
Drain Source Voltage- : VDSS= 650V(Min).
Static Drain-Source On-Resistance : RDS(on) = 340mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
