STP100N10F7 - TO-220C N-Channel MOSFET

STP100N10F7 Description

Isc N-Channel MOSFET Transistor *.

STP100N10F7 Features

* Very low on-resistance
* Very low gate charge
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation INCHANGE Semiconductor STP100N10F7

STP100N10F7 Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±20 80 70 320 PD Total Dissipation 150 Tj Operating Junction Tempe

📥 Download Datasheet

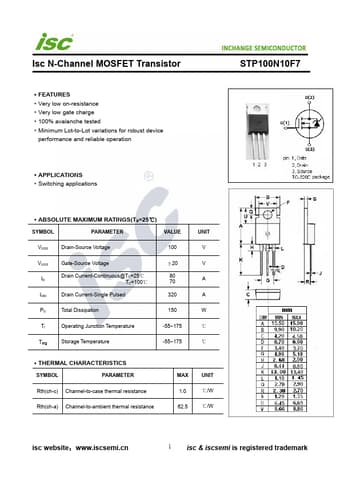

Preview of STP100N10F7 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP100N10F7
Manufacturer
INCHANGE
File Size
201.00 KB
Datasheet
STP100N10F7-INCHANGE.pdf
Description
TO-220C N-Channel MOSFET
