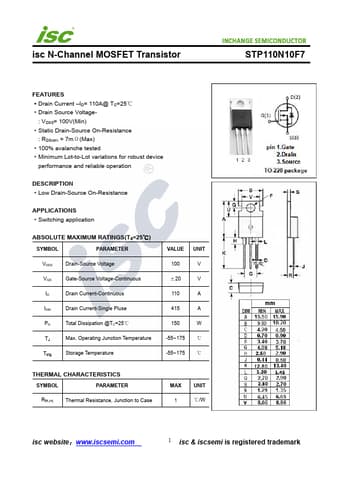

STP110N10F7 Datasheet, Mosfet, INCHANGE

STP110N10F7 Features

• Mosfet
• Drain Current
    –ID= 110A@ TC=25℃
• Drain Source Voltage- : VDSS= 100V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 7mΩ(Max)
• 100% a

PDF File Details

Part number:

STP110N10F7

Manufacturer:

INCHANGE

File Size:

270.33kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

Low Drain-Source On-Resistance APPLICATIONS

Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAM

STP110N10F7 Application

• Applications
• Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Volta
