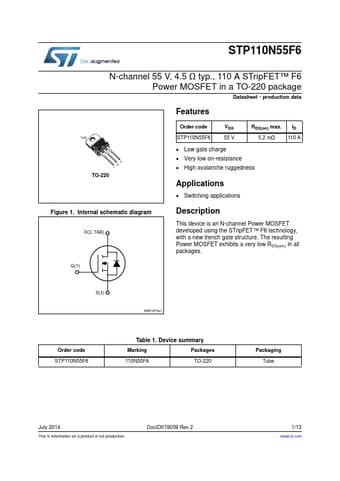

STP110N55F6 Datasheet, Mosfet, STMicroelectronics

STP110N55F6 Features

• Mosfet TAB 3 2 1 TO-220 Order code STP110N55F6 VDS 55 V RDS(on) max. ID 5.2 mΩ 110 A
• Low gate charge
• Very low on-resistance
• High avalanche ruggedness Applic

PDF File Details

Part number:

STP110N55F6

Manufacturer:

STMicroelectronics ↗

File Size:

622.61kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using the STripFET™ F6 technology, with a new trench gate structure. The resulting

STP110N55F6 Application

• Applications
• Switching applications Figure 1. Internal schematic diagram '7$% Description This device is an N-channel Power MOSFET
