STP11N65M2 Datasheet, Mosfet, STMicroelectronics

STP11N65M2 Features

  • Mosfet Order code VDS RDS(on) max. ID STD11N65M2 STP11N65M2 650 V 0.68 Ω 7A STU11N65M2
  • Extremely low gate charge
  • Excellent output capacitance (COSS) profile

PDF File Details

Part number:

STP11N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

757.35kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using the MDmesh M2 technology. Thanks to their strip layout and improved vertica

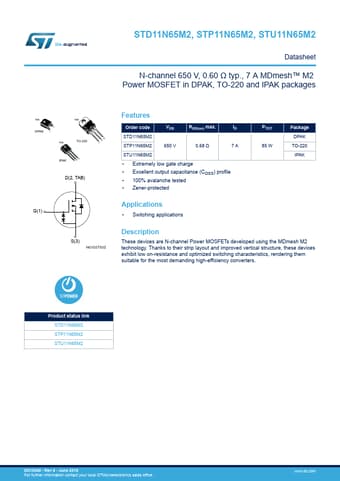

Datasheet Preview: STP11N65M2 📥 Download PDF (757.35kb)
Page 2 of STP11N65M2 Page 3 of STP11N65M2

STP11N65M2 Application

  • Applications
  • Switching applications Description These devices are N-channel Power MOSFETs developed using the MDmesh M2 technology. Thank
