STP11NM60ND - N-Channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

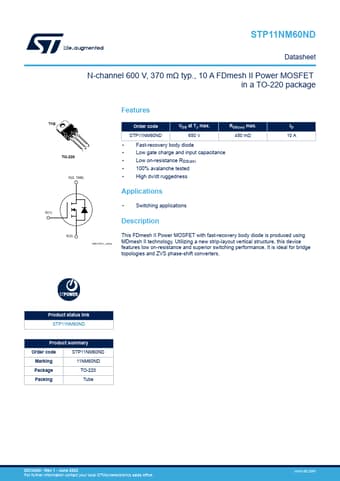

STP11NM60ND Datasheet Preview — Preview of STP11NM60ND PDF

Datasheet Details

Part number: STP11NM60ND
Manufacturer: STMicroelectronics ↗
File Size: 619.08 KB
Datasheet: STP11NM60ND_STMicroelectronics.pdf
Description: N-Channel Power MOSFET

STP11NM60ND Product details

Description

S(3) This FDmesh II Power MOSFET with fast-recovery body diode is produced using AM01475v1_noZen MDmesh II technology.Utilizing a new strip-layout vertical structure, this device

Features

TAB TO-220 1 23 D(2, TAB) Order code VDS at TJ max. RDS(on) max. ID STP11NM60ND 650 V 450 mΩ 10 A.
Fast-recovery body diode.
Low gate charge and input capacitance.
Low on-resistance RDS(on).
100% avalanche tested.
High dv/dt ruggedness.
