STP11NM60FDFP, STP11NM60FD Datasheet - ST Microelectronics

STP11NM60FDFP N-CHANNEL Power MOSFET

The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters. TO-220 TO-220FP 3 1 3 12 D2PAK I2PAK INTERNAL SCHEMATIC DIAGRAM .
www.DataSheet4U.com STP11NM60FD- STB11NM60FD STP11NM60FDFP - STB11NM60FD-1 N-CHANNEL 600V-0.40Ω-11ATO-220/TO-220FP/I2PAK/D2PAK FDmesh™Power MOSFET (with FAST DIODE) TYPE STP11NM60FD STP11NM60FDFP STB11NM60FD STB11NM60FD-1 VDSS 600 600 600 600 V V V V RDS(on) < < < < 0.45Ω 0.45Ω 0.45Ω 0.45Ω ID 11 A 11 A 11 A 11 A 1 3 2 1 3 2 TYPICAL RDS(on) = 0.40Ω HIGH dv/dt AND AVALANCHE CAPABILITIES 100% AVALANCHE TESTED LOW INPUT CAPACITANCE AND GATE CHARGE LOW GATE INPUT RESISTANCE TIGHT PROCESS CONTROL .

STP11NM60FD_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STP11NM60FDFP, STP11NM60FD. Please refer to the document for exact specifications by model.

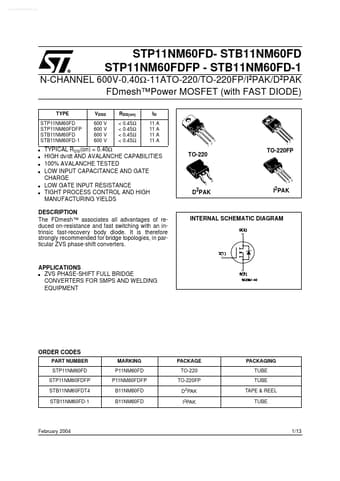

STP11NM60FDFP Datasheet Preview Page 2 STP11NM60FDFP Datasheet Preview Page 3

Datasheet Details

Part number:

STP11NM60FDFP, STP11NM60FD

Manufacturer:

STMicroelectronics ↗

File Size:

362.15 KB

Description:

N-channel power mosfet.

Note:

This datasheet PDF includes multiple part numbers: STP11NM60FDFP, STP11NM60FD.
Please refer to the document for exact specifications by model.
